Overview

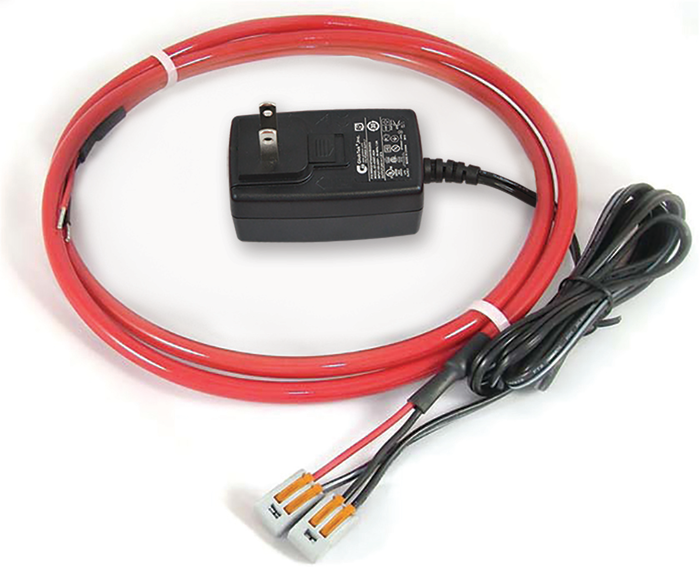

The L29796CBL is intended to facilitate outdoor installations that use the L29796 wall adapter. As the adapter and its cable are indoor rated only, the L29796 must be housed in an appropriate electrical box or building. The FIN2PWR-L outdoor rated cable would then run the remaining distance to the Campbell equipment enclosure.
Read MoreImages
Detailed Description
Installation Instructions:
1. Run the FIN2PWR-L cable as required for the application from the Campbell equipment enclosure to the L29796 housing.
2. Connect leads to power supply located at equipment enclosure. See power supply literature for more details.
3. Connect one lead from each cable to a C2671 terminal block. There is no specific cable orientation required.
4. Connect the L29796 to the 120Vac output.
** Shock Hazard. Do not plug in the L29796 until all other connections are made.
Similar Products
Specifications
L29796 – Wall Adapter
- Input: 100 - 240Vac @ 47 - 63Hz, 1A
- Output: 24Vdc, 1.67A (Class II output)
- Operating Temperatures: -40°C to 40°C
- Storage Temperature: -40°C to 80°C
- Approvals – UL/c 1310, CSA 22.2
C2671 – 2 Conductor Terminal Blocks with Levers
- Wire Diameters: 28 to 12 AWG
- Maximum Voltage: 400V
- Maximum Current: 32A
FIN2PWR-L – Power Feed Cable
- 2 conductor cable, 18AWG, Unshielded
- Maximum Length: 150 feet
