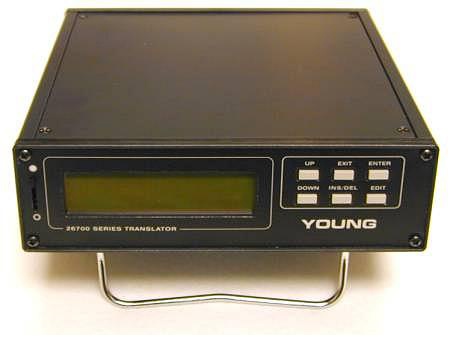

26700 RM Young Programmable Translator and Display
Services Available

Overview

The 26700 was replaced by the 26800 Programmable Translator.

This microprocessor-based display and data collection device has the features and flexibility to perform many monitoring tasks. From simple display of one variable to multi-sensor datalogging and serial data transmission, the 26700 Programmable Translator can satisfy your measurement needs.

Read More

Images

Detailed Description

The 26700 interacts with the user through menus presented on the LCD display. Menu selections and data entries are made with the keys on the front panel. Each location in the menu structure is identified on the top line of the display.

The bottom line of the display shows the menu choices. Use the UP and DOWN keys to scroll through the menu list. When you see the menu item you want, use the ENTER key to select it. In OPERATE mode, the 26700 executes the instructions in the internal program.

The LCD can display up to 10 internal screens. The unit scrolls through them automatically or they may be manually selected using the UP and DOWN keys depending on the state of the SET SCROLL parameter (see SET SCROLL, section 2.2).

Data recording and real-time processes involving more than one sample such as averages, standard deviation, min, and max occur ONLY while in OPERATE mode. When you EXIT the OPERATE mode, all measurements, calculations, and data recording stop. Re-entering OPERATE mode restarts the processes from the beginning. To leave OPERATE mode and return to the MAIN MENU, press EXIT. Use the UP/DOWN keys to select Y or N then press ENTER.

Specifications

  • Dimensions: 3.1 in (79 mm) H x 8.5 in (216 mm) W x 8.8 in (224 mm) D
  • Weight: 2.8 lb (1.3 kg) base unit only, 0.2 lb (0.1 kg) each module
  • Construction: Aluminum case, thermoplastic front and back panels
  • Operating Temperature: O°C to 50°C
  • Storage Temperature: -30°C to 50°C
  • Display: 2 lines x 16 character alpha-numeric LCD with backlight
  • Power Requirement: 7-30 VDC 8 W (AC adapter supplied, UL & CSA listed)
  • Serial Interface: RS-232, 9 pin, 300 to 9600 BAUD
  • Memory: 24,000 data points, battery back-up
