Provides 4-20mA signal conversion
Uses independent circuits for wind speed & direction
Overview

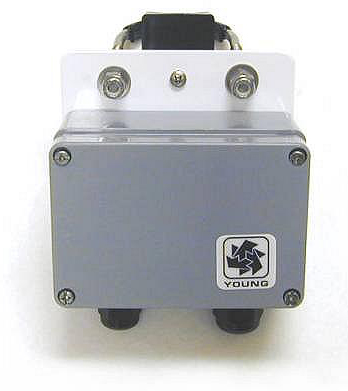

05631C RM Young Wind Line Driver converts raw signals from the wind sensors to proportional 4 to 20 mA current loop values. The Line Driver acts like a variable resistance that draws 4 - 20 mA when powered with 12 to 30VDC. Although it has only one PC board, the Line Driver contains two completely independent circuits - one for wind speed and the other for wind direction. Read MoreImages
Detailed Description
05631C RM Young Wind Line Driver converts raw signals from the wind sensors to proportional 4 to 20 mA current loop values. The Line Driver acts like a variable resistance that draws 4 - 20 mA when powered with 12 to 30VDC. Although it has only one PC board, the Line Driver contains two completely independent circuits - one for wind speed and the other for wind direction.
Specifications
Power Requirement: 12-30 VDC
Temperature Range: -50 to 50°C
(-58 to 122°F)
Inputs: RM Young Wind Monitor series of sensors
Wind Speed AC sine wave, Frequency proportional to wind speed.
3 pulses per revolution. Input sensitivity nom. 40 mV p-p
Wind Direction Analog voltage from azimuth potentiometer. Regulated excitation voltage is supplied from interface circuit to potentiometer.
Outputs:
Wind Speed 4 to 20 mA full scale
Circuit time constant 0.2 second
Wind Direction 4 to 20 mA for 0 to 360°
Overall Accuracy: ±1% of full scale over temperature and supply voltage range
Dimensions: 110 mm (4.3 in) W x 75 mm (2.9 in) H x 56 mm (2.2 in) D
Mounting: U-bolt for vertical pipe 25-50mm (1-2 in) diameter
