Overview

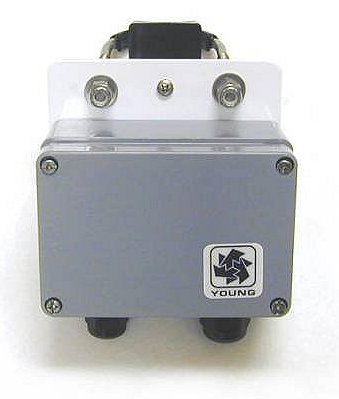

05603C RM Young Wind Sensor Interface provides calibrated analog DC voltage signals for wind speed and wind direction. The unit consists of a circuit board assembly in a weather resistant junction box. All cable connections are made in the junction box. Read MoreImages
Detailed Description
05603C RM Young Wind Sensor Interface provides calibrated analog DC voltage signals for wind speed and wind direction. The unit consists of a circuit board assembly in a weather resistant junction box. All cable connections are made in the junction box.
Specifications
- Power Requirement: 8-24 VDC (5 mA @ 12 VDC)
- Temperature Range: -50 to 50°C, (-58 to 122°F)
Inputs RM Young Wind Monitor series of sensors:
- Wind Speed: AC sine wave, Frequency proportional to wind speed. 3 pulses per revolution. Input sensitivity nom. 40 mV p-p
- Wind Direction: Analog voltage from azimuth potentiometer. Excitation is supplied from interface circuit to potentiometer
Outputs:
- Wind Speed: 0 to 5.00 VDC full scale Circuit time constant 0.2 second
- Wind Direction 0 to 5.00 VDC for 0 to 360°
- Overall Accuracy: ±1% of full scale over temperature and supply voltage range
- Dimensions: 110 mm (4.3 in) W x 75 mm (2.9 in) H x 56 mm (2.2 in) D
- Mounting: U-bolt for vertical pipe 25-50mm (1-2 in) diameter
