Customizable, Integrated System
Requires as little as 6 W of power
Request a Quote
Ask a Question
Overview

Image Gallery

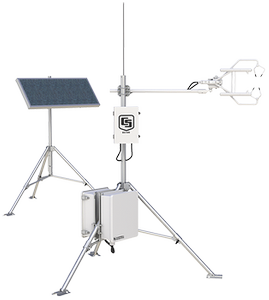

The open path eddy covariance systems measure sonic sensible heat flux, momentum flux, and the flux of other scalars between the atmosphere and earth’s surface. The system consists of a datalogger, fast response three-dimensional sonic anemometer, and fast response scalar sensors. An independent measure of temperature and humidity from a slow response sensor is also measured to calculate background meteorological variables. Horizontal wind speed and direction are computed by the datalogger from the three-dimensional measurements of wind made by the sonic anemometer.

Basic OPEC

  • Sonic Anemometer (CSAT3A)
  • Infrared Gas Analyzer (EC150)
  • Integrated Sonic Anemometer and Infrared Gas Analyzer (IRGASON)
  • Datalogger (CR3000)
  • Compact Flash card module (NL115 or CFM100)

Extended OPEC

  • Net Radiation (NR-LITE2)
  • Soil Heat Flux (HFP01SC-L)
  • Soil Temperature (TCAV-L)
  • Soil Water Content (CS616-L)
  • Sensible Heat (FW05)
  • Latent Heat (KH20)
  • Temperature and Humidity Probe (HMP155A-L)

Customize It

This system can be customized. Request a quote and tell us what you want to add, remove, or substitute.

Measurements

Carbon-dioxide flux, Water-vapor flux, Momentum flux, Turbulence intensity, Sensible heat flux, Three-dimensional wind velocity, Sonic temperature, Air temperature, Barometric pressure

Open-Path Eddy-Covariance System Benefits and Features

  • Customizable system providing a range of measurement options
  • Measurements are temporally synchronized through a common set of electronics
  • Low noise
  • Fully integrated, turn-key system
  • User-selectable output bandwidths
  • Low power consumption—suitable for solar-powered applications
  • Field Rugged
  • Field serviceable
  • On-board data storage using CompactFlash cards and a memory module
  • Extensive set of diagnostic parameters to warn of questionable data
  • Colocated measurement volumes for both analyzer and anemometer
